A3425

Ultra-Sensitive Dual-Channel Quadrature Hall-Effect Bipolar Switch

A3425 Features

* I Two Matched Hall Switches On A Single Substrate I I I I I I I I 1 mm Sensor-to-Sensor Spacing Superior Temperature Stability Resistant to Physical Stress Output Short-Circuit Protection Operation From Unregulated Supply Reverse Battery Protection Solid-State Reliability Integrated ESD Protection

A3425 General Description

Chopper-Stabilized Technique. These devices use a proprietary dynamic offset cancellation technique, with an internal high-frequency clock to reduce the residual offset voltage of the Hall element that is normally caused by device overmolding, temperature dependencies, and thermal stress. This techn.

A3425 Datasheet (411.01 KB)

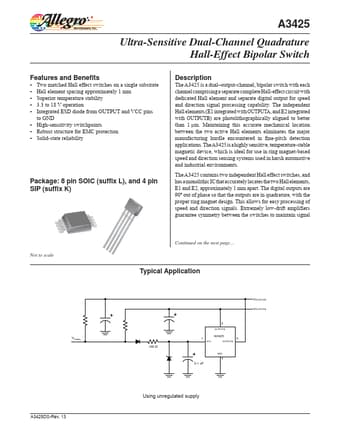

Preview of A3425 PDF

Datasheet Details

Part number:

A3425

Manufacturer:

Allegro MicroSystems

File Size:

411.01 KB

Description:

Ultra-sensitive dual-channel quadrature hall-effect bipolar switch.
3425 DUAL, CHOPPER-STABILIZED, ULTRA-SENSITIVE, BIPOLAR HALL-EFFECT SWITCH The A3425LK dual Hall-effect switch is an extremely temperature-stable and.
