A3962

DUAL FULL-BRIDGE PWM MOTOR DRIVER

A3962 Features

* s s s s s s s s ±800 mA Continuous Output Current Rating 30 V Output Voltage Rating Internal PWM Current Control, Saturated Sink Drivers Internally Generated Precision 2.5 V Reference Internal Transient-Suppression Diodes Internal Thermal-Shutdown Circuitry Crossover-Current Protection, UVLO Protec

A3962 General Description

Internal PWM Current Control. The A3962SLB contains a fixed off-time pulse-width modulated (PWM) currentcontrol circuit that can be used to limit the load current to a desired value. The peak value of the current limiting (ITRIP) is set by the selection of an external current-sensing resistor (RS ) .

A3962 Datasheet (86.44 KB)

Preview of A3962 PDF

Datasheet Details

Part number:

A3962

Manufacturer:

Allegro MicroSystems

File Size:

86.44 KB

Description:

Dual full-bridge pwm motor driver.
3962 DUAL FULL-BRIDGE PWM MOTOR DRIVER 3962 Designed for pulse-width modulated (PWM) current control of bipolar stepper motors, the A3962SLB is capab.

📁 Related Datasheet

A3961 - DUAL FULL-BRIDGE PWM MOTOR DRIVER (ALLEGRO)
Data Sheet 29319.26 3961 DUAL FULL-BRIDGE PWM MOTOR DRIVER 3961 DUAL FULL-BRIDGE PWM MOTOR DRIVER Designed for pulse-width modulated (PWM) current.

A3964 - Dual Full-Bridge PWM Motor Driver (ALLEGRO)
A3964 Dual Full-Bridge PWM Motor Driver Features and Benefits ▪ ±800 mA continuous output current rating ▪ 30 V output voltage rating ▪ Internal PWM .

A3966 - Dual Full-Bridge PWM Motor Driver (Allegro MicroSystems)
A3966 Dual Full-Bridge PWM Motor Driver FEATURES AND BENEFITS ▪ ±650 mA continuous output current ▪ 30 V output voltage rating ▪ Internal fixed-frequ.

A3967 - Microstepping Driver (Allegro MicroSystems)
.

A3968 - Dual Full-Bridge PWM Motor Driver (Allegro)
A3968 Dual Full-Bridge PWM Motor Driver Features and Benefits ▪ ±650 mA continuous output current ▪ 30 V output voltage rating ▪ Internal fixed-frequ.

A3969 - Dual Full-Bridge PWM Motor Driver (Allegro MicroSystems)
.. A3969 Dual Full-Bridge PWM Motor Driver Features and Benefits ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ±650 mA Continuous Output Current 30 V Output Volta.

A39 - 10 TO 2000 MHz CASCADABLE AMPLIFIER (Tyco Electronics)
A39/SMA39 10 TO 2000 MHz CASCADABLE AMPLIFIER · HIGH OUTPUT POWER: +22 dBm (TYP.) · HIGH THIRD ORDER I.P.: +34 dBm (TYP.) · WIDE BANDWIDTH: 10-2000 MH.

A390 - SILICON RECTIFIER (Powerex Power Semiconductors)
.

TAGS

A3962 DUAL FULL-BRIDGE PWM MOTOR DRIVER Allegro MicroSystems

Image Gallery

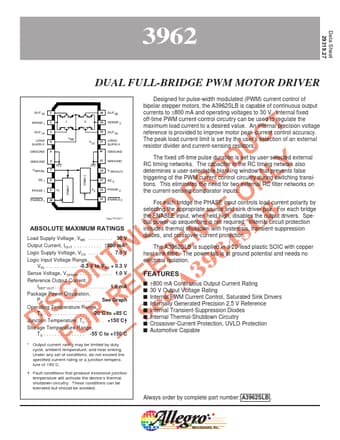

A3962 Datasheet Preview Page 2 A3962 Datasheet Preview Page 3
