A3968

Dual Full-Bridge PWM Motor Driver

Allegro

A3968 Features

* ▪ ±650 mA continuous output current ▪ 30 V output voltage rating ▪ Internal fixed-frequency PWM current control ▪ Satlington® sink drivers ▪ Brake mode ▪ User-selectable blanking window ▪ Internal ground-clamp and flyback diodes ▪ Internal thermal-shutdown circuitry ▪ Crossover-current protection an

A3968 General Description

TheA3968 bidirectionally controls two DC motors. The device includes two full-bridges capable of continuous output currents of ±650 mA and operating voltages to 30 V. Motor winding current can be controlled by the internal fixed-frequency, pulse-width modulated (PWM), current-control circuitry. The .

A3968 Datasheet (549.63 KB)

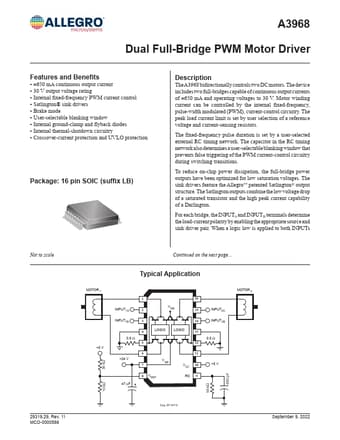

A3968 Datasheet Preview — Preview of A3968 PDF

Datasheet Details

Part number:

A3968

Manufacturer:

Allegro

File Size:

549.63 KB

Description:

Dual full-bridge pwm motor driver.
