UDN2596 Datasheet - Allegro MicroSystems

UDN2596 8-CHANNEL SATURATED SINK DRIVERS

UDN2596 Features

* ABSOLUTE MAXIMUM RATINGS at TA = + 25°C OutputVoltage,VCE 50 V Output Current, IOUT (UDN2596A) 500 mA (UDN2597A) 1.0 A Supply Voltage, VCC 7.0 V Input Voltage, VlN 7.0 V Package Power Dissipation, PD 2.27 W

* Operating Temperature Range, TA -20°C to +85°C Storage Temperature Range, TS - 6

UDN2596_AllegroMicroSystems.pdf

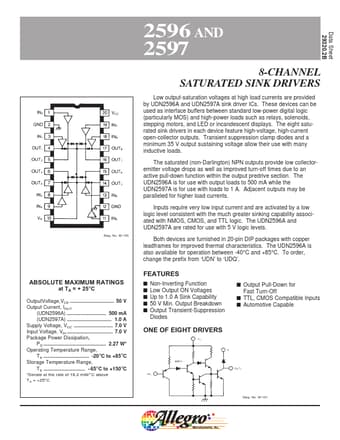

Preview of UDN2596 PDF
UDN2596 Datasheet Preview Page 2 UDN2596 Datasheet Preview Page 3

Datasheet Details

Part number:

UDN2596

Manufacturer:

Allegro MicroSystems

File Size:

60.86 KB

Description:

8-channel saturated sink drivers.
