A5943 - Three Phase Sinusoidal Fan Driver

Product Overview

Allegro

Datasheet Details

Part number	A5943
Manufacturer	Allegro
File Size	391.80 KB
Description	Three Phase Sinusoidal Fan Driver
Datasheet	A5943 Datasheet

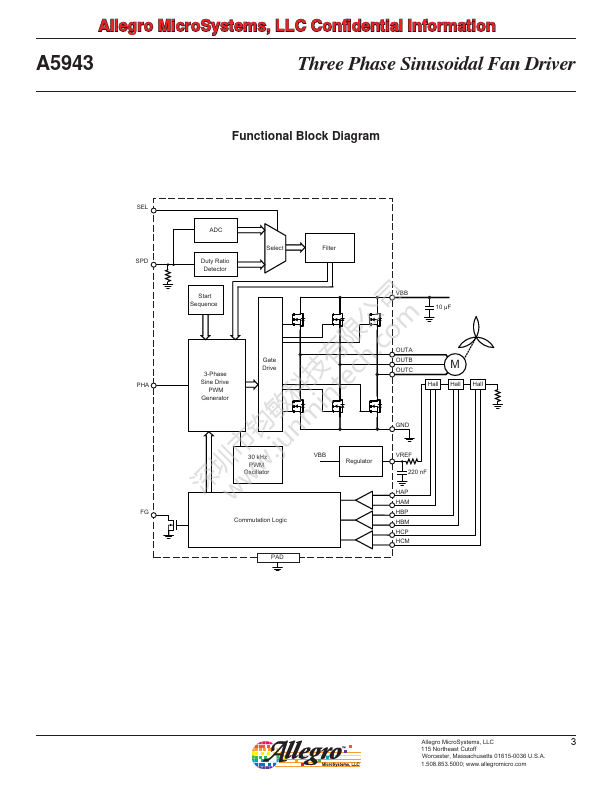

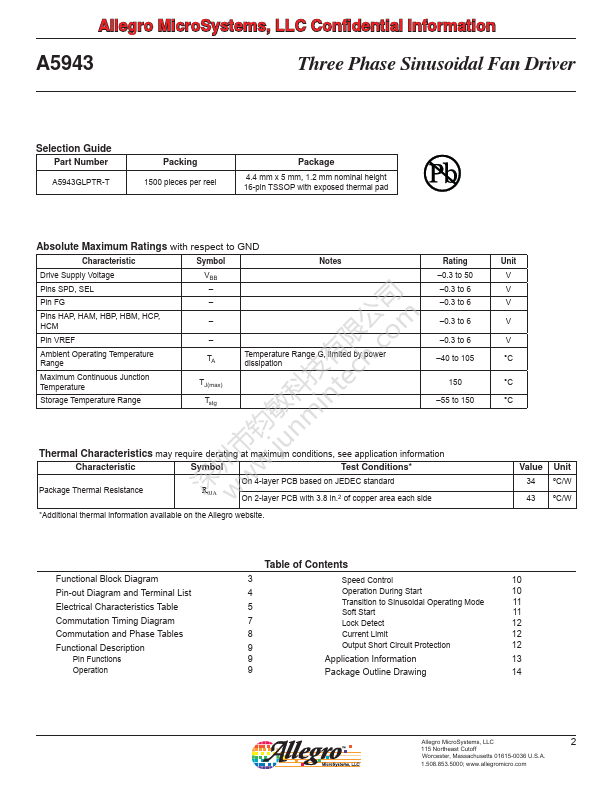

Additional preview pages of the A5943 datasheet.

Product details

Description

Full 3-phase sinusoidal drive The A5943 is a low noise, three phase motor driver with PWM speed input integrated power bridge suitable for driving small fans and Analog speed input blowers.Motor audible noise and vibration is reduced by FG speed output driving the phases with sinusoidal PWM excitation.Motor Lock detection current is controlled using PWM techniques to minimize the Current limiting power dissipation.
