A8284 Datasheet - Allegro

A8284 TWO-OUTPUT LNB SUPPLY AND CONTROL-VOLTAGE REGULATOR

Data Sheet 27448.1 8284 ADVANCE INFORMATION (Subject to change without notice) December 22, 2000 TWO-OUTPUT LNB SUPPLY AND CONTROL-VOLTAGE REGULATOR Intended for analog and digital satellite receivers, the low noise block A8284SLB converter regulator (LNBR) is a monolithic linear and switching voltage regulator designed to provide power and interface signals to the LNB OSEL 1 24 EXTM downconverter via the coaxial cable. Because most satellite receivers have two antenna ports, the output.

A8284 Datasheet (163.60 KB)

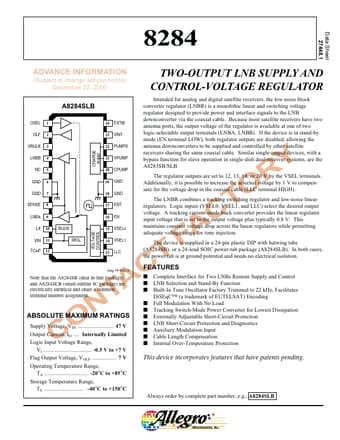

Preview of A8284 PDF
A8284 Datasheet Preview Page 2 A8284 Datasheet Preview Page 3

Datasheet Details

Part number:

A8284

Manufacturer:

Allegro

File Size:

163.60 KB

Description:

Two-output lnb supply and control-voltage regulator.
