ACS70311 - Programmable Linear Hall-Effect Sensor

Product Overview

Allegro

Part number	ACS70311
Manufacturer	Allegro
File Size	2.04 MB
Description	Programmable Linear Hall-Effect Sensor
Datasheet	ACS70311 Datasheet
Note	This datasheet PDF includes multiple part numbers: ACS70311, ACS70310. Please refer to the document for exact specifications by model.

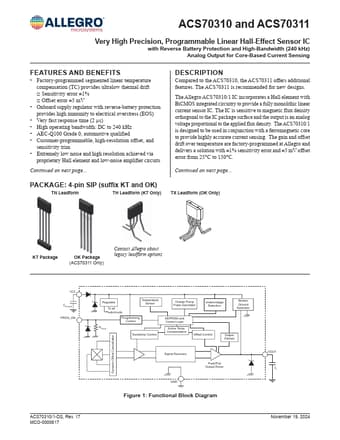

Additional preview pages of the ACS70311 datasheet.

Compared to the ACS70310, the ACS70311 offers additional

Factory-programmed segmented linear temperature compensation (TC) provides ultralow thermal drift.
Sensitivity error ±1%.
Offset error ±5 mV.
Onboard supply regulator with reverse-battery protection provides high immunity to electrical overstress (EOS).
Very fast response time (2 µs).
High operating bandwidth: DC to 240 kHz.
AEC-Q100 Grade 0, automotive qualified.
Customer-programmable, high-resolution offset, and sensitivi.
