ACS717 - Linear Current Sensor

ACS717 Description

ACS717 High Isolation, Linear Current Sensor IC with 850 µΩ Current Conductor .
TheAllegro™ACS717 current sensor IC is an economical, high isolation solution for AC or DC current sensing in industrial, commercial, and communicatio.

ACS717 Features

* IEC/UL 60950-1 Ed. 2 certified to:
* Dielectric Strength = 4800 Vrms (tested for 60 seconds)
* Basic Isolation = 1550 Vpeak
* Reinforced Isolation = 800 Vpeak

ACS717 Applications

* that require high galvanic isolation
* 0.85 mΩ primary conductor for low power loss and high inrush current withstand capability
* Low, 400 μARMS√Hz noise density results in typical input referred noise of 70 mA(rms) at max bandwidth (40 kHz)
* 3.3 V, single supply operation

📥 Download Datasheet

Preview of ACS717 PDF

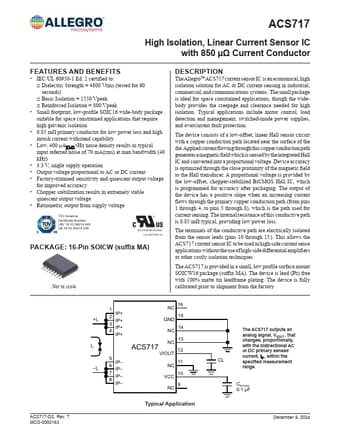

datasheet Preview Page 2 datasheet Preview Page 3
