ACS730 Datasheet, Sensor, Allegro

ACS730 Features

• Sensor
• Industry-leading noise performance with greatly improved bandwidth through proprietary amplifier and filter design techniques
• High bandwidth 1 MHz analog output

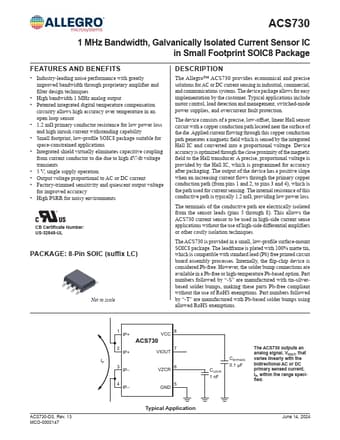

PDF File Details

Part number:

ACS730

Manufacturer:

Allegro

File Size:

2.18MB

Download:

📄 Datasheet

Description:

Galvanically isolated current sensor. The Allegro™ ACS730 provides economical and precise solutions for AC or DC current sensing in industrial, commercial, and communicati

ACS730 Application

• Applications
• Integrated shield virtually eliminates capacitive coupling from current conductor to die due to high dV/dt voltage transients
