Description

ACS732KMA and ACS733KMA 1 MHz Bandwidth, Galvanically Isolated Current Sensor IC in SOIC-16 Package .
The ACS732KMA and ACS733KMA are a new generation of high bandwidth current sensor ICs from Allegro™.

📥 Download Datasheet

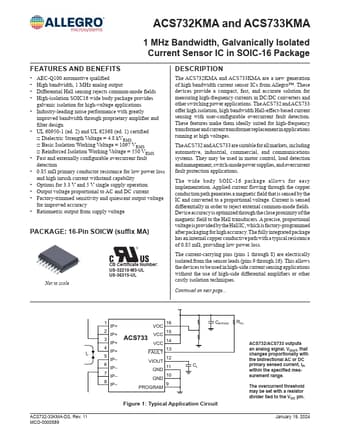

ACS733KMA Datasheet Preview — This datasheet PDF includes multiple part numbers: ACS733KMA, ACS732KMA. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: ACS733KMA, ACS732KMA
Manufacturer: Allegro
File Size: 2.34 MB
Datasheet: ACS732KMA-Allegro.pdf
Description: Galvanically Isolated Current Sensor
Note: This datasheet PDF includes multiple part numbers: ACS733KMA, ACS732KMA.
Please refer to the document for exact specifications by model.

Features

* AEC-Q100 automotive qualified
* High bandwidth, 1 MHz analog output
* Differential Hall sensing rejects common-mode fields

Applications

* Industry-leading noise performance with greatly improved bandwidth through proprietary amplifier and filter design
* UL 60950-1 (ed. 2) and UL 62368 (ed. 1) certified
* Dielectric Strength Voltage = 4.8 kVRMS
* Basic Isolation Working Voltage = 1097 VRMS
* R
