ACS772 - Galvanically Isolated Current Sensor

ACS772 Description

ACS772 High Accuracy, Hall-Effect-Based, 200 kHz Bandwidth, Galvanically Isolated Current Sensor IC with 100 µΩ Current Conductor .
The Allegro™ ACS772 family of current sensor ICs provide economical and precise solutions forAC or DC current sensing, ideal for motor control, load d.

ACS772 Features

* AEC-Q100 Grade 1 qualified
* Typical of 2.5 μs output response time
* 5 V supply operation
* Ultra-low power loss: 100 μΩ internal conductor resistance
* Reinforced galvanic isolation allows use in economical, high-side current sensing in high-voltage system

ACS772 Applications

* Greatly improved total output error through digitally programmed and compensated gain and offset over the full operating temperature range
* Small package size, with easy mounting capability
* Monolithic Hall IC for high reliability
* Output voltage proportional to

📥 Download Datasheet

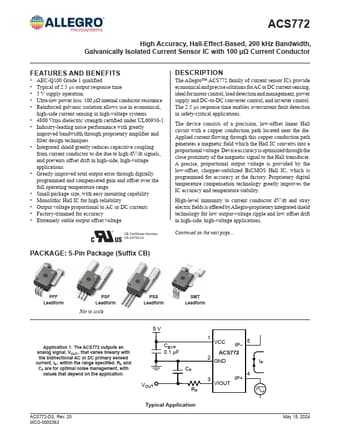

Preview of ACS772 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ACS772
Manufacturer
Allegro
File Size
2.42 MB
Datasheet
ACS772-Allegro.pdf
Description
Galvanically Isolated Current Sensor
