ACS770KCB, ACS770LCB-050B-PFF-T High Precision Linear Current Sensor

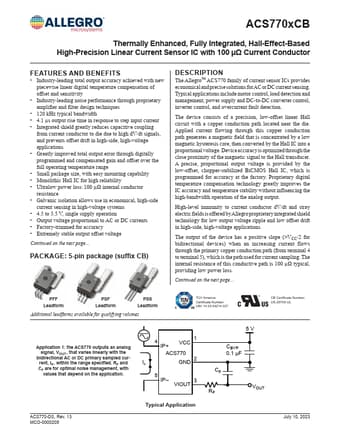

📥 Download Datasheet  Datasheet Preview Page 1

Description

ACS770xCB Thermally Enhanced, Fully Integrated, Hall-Effect-Based High-Precision Linear Current Sensor IC with 100 µΩ Current Conductor .
The Allegro™ ACS770 family of current sensor ICs provides economical and precise solutions forAC or DC current sensing.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ACS770KCB, ACS770LCB-050B-PFF-T. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
ACS770KCB, ACS770LCB-050B-PFF-T
Manufacturer
Allegro MicroSystems
File Size
1.94 MB
Datasheet
ACS770LCB-050B-PFF-T-AllegroMicroSystems.pdf
Description
High Precision Linear Current Sensor
Note
This datasheet PDF includes multiple part numbers: ACS770KCB, ACS770LCB-050B-PFF-T.
Please refer to the document for exact specifications by model.

Features

* Industry-leading total output accuracy achieved with new piecewise linear digital temperature compensation of offset and sensitivity
* Industry-leading noise performance through proprietary amplifier and filter design techniques
* 120 kHz typical bandwidth
* 4.1 µs

Applications

* Greatly improved total output error through digitally programmed and compensated gain and offset over the full operating temperature range
* Small package size, with easy mounting capability
* Monolithic Hall IC for high reliability
* Ultralow power loss: 100 µΩ int
