STRW6754 Universal Input 100W OffLine Quasi-Resonant Flyback Switching Regulator

and applications information is provided in Application Note 28103.30, Series STRW6750 Off-Line Quasi-Resonant Flyback Switching Regulators. The products described herein are manufactured in Japan by Sanken Electric Co., Ltd. for sale by Allegro MicroSystems, Inc. Sanken and Allegro reserve the rig.

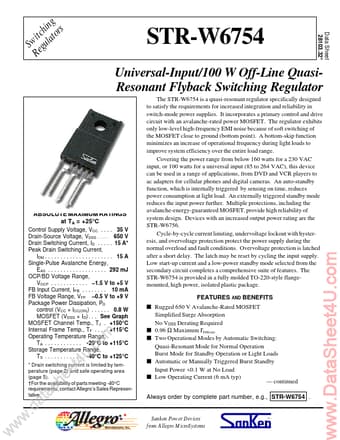

g n i h tors c t i a Sw egul R STR-W6754 Universal-Input/100 W Off-Line QuasiResonant Flyback Switching Regulator The STR-W6754 is a quasi-resonant regulator specifically designed to satisfy the requirements for increased integration and reliability in switch-mode power supplies. It incorporates a primary control and drive circuit with an avalanche-rated power MOSFET. The regulator exhibits only low-level high-frequency EMI noise because of soft switching of the MOSFET close to ground (bottom .

STRW6754 Features

* Rugged 650 V Avalanche-Rated MOSFET Simplified Surge Absorption No VDSS Derating Required

* 0.96 Ω Maximum rDS(on)

* Two Operational Modes by Automatic Switching: Quasi-Resonant Mode for Normal Operation Burst Mode for Standby Operation or Light Loads

* Automatic or Manually Trigge

STRW6754 Datasheet (248.16 KB)

STRW6754 Datasheet Preview — Preview of STRW6754 PDF

Datasheet Details

Part number:

STRW6754

Manufacturer:

Allegro

File Size:

248.16 KB

Description:

Universal input 100w offline quasi-resonant flyback switching regulator.
