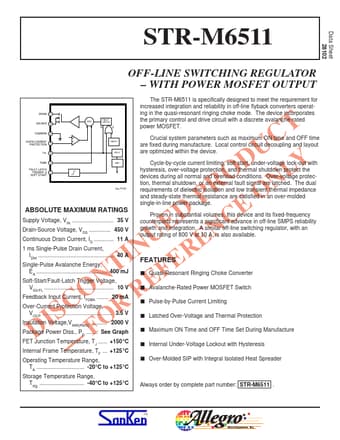

Preview of STR-M6511 PDF
STR-M6511 Datasheet Preview Page 2 STR-M6511 Datasheet Preview Page 3

Datasheet Details

Part number:

STR-M6511

Manufacturer:

Allegro

File Size:

72.17 KB

Description:

Off-line switching regulator.

STR-M6511, OFF-LINE SWITCHING REGULATOR

STR-M6511 OFF-LINE SWITCHING REGULATOR WITH POWER MOSFET OUTPUT DRAIN 1 OSC.

FAULT LATCH Data Sheet 28102 SOURCE 2 R COMMON OVER-CURRENT PROTECTION V IN S The STR-M6511 is specifically designed to meet the requirement for increased integration and reliability in off-line flyback converters operating in the quasi-resonant ringing choke mode.

The device incorporates the primary control and drive circuit with a discrete avalanche-rated power MOSFET.

Crucial system parameters such as

STR-M6511 Features

* s Quasi-Resonant Ringing Choke Converter s Avalanche-Rated Power MOSFET Switch s Pulse-by-Pulse Current Limiting s Latched Over-Voltage and Thermal Protection s Maximum ON Time and OFF Time Set During Manufacture s Internal Under-Voltage Lockout with Hysteresis s Over-Molded SIP with Integral Isola
