STR-G6653 Datasheet - Allegro

STR-G6653 - OFF-LINE QUASI-RESONANT FLYBACK SWITCHING REGULATOR

Data Sheet 28102.9 STR-G6653 GROUND 3 SUPPLY 4 OSC.

FDBK LATCH VIN OCP UVLO OVP TSD 5 OFF-LINE QUASI-RESONANT FLYBACK SWITCHING REGULATOR The STR-G6653 is specifically designed to satisfy the requirements for increased integration and reliability in off-line quasi-resonant flyback converters.

This device incorporates the primary control and drive circuit with a discrete avalanche-rated power MOSFET.

Cycle-by-cycle current limiting, under-voltage lockout with hysteresis, over-voltag

STR-G6653 Features

* The device is provided in a five-pin over-molded TO-220 style package, affording dielectric isolation without compromising thermal characteristics. Proven in substantial volumes, the STR-G6653 is a robust low-risk solution for off-line power supplies particularly where management of EMI at the sour

STR-G6653-Allegro.pdf

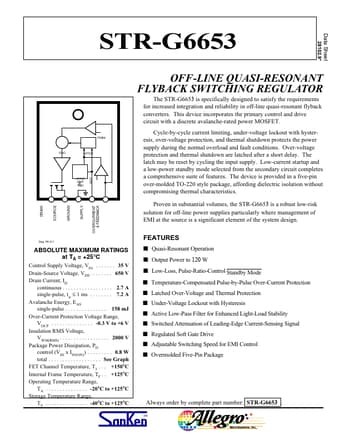

Preview of STR-G6653 PDF
STR-G6653 Datasheet Preview Page 2 STR-G6653 Datasheet Preview Page 3

Datasheet Details

Part number:

STR-G6653

Manufacturer:

Allegro

File Size:

251.60 KB

Description:

Off-line quasi-resonant flyback switching regulator.
