ASM3P623S00D, ASM3P623S00A - Zero Cycle Slip Peak EMI reduction IC

Alliance Semiconductor Corporation

Datasheet Details

Part number	ASM3P623S00D, ASM3P623S00A
Manufacturer	Alliance Semiconductor Corporation
File Size	339.76 KB
Description	Zero Cycle Slip Peak EMI reduction IC
Datasheet	ASM3P623S00A_AllianceSemiconductorCorporation.pdf
Note	This datasheet PDF includes multiple part numbers: ASM3P623S00D, ASM3P623S00A. Please refer to the document for exact specifications by model.

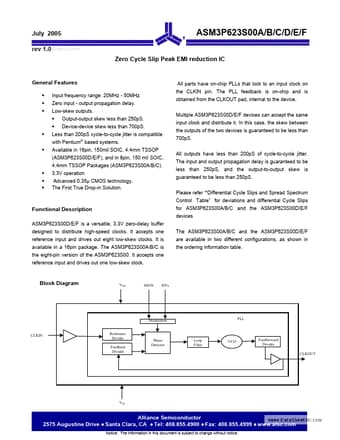

ASM3P623S00D/E/F is a versatile, 3.3V zero-delay buffer designed to distribute high-speed clocks.

Input frequency range: 20MHz - 50MHz. Zero input - output propagation delay. Low-skew outputs.
Output-output skew less than 250pS. Device-device skew less than 700pS. All parts have on-chip PLLs that lock to an input clock on the CLKIN pin. The PLL feedback is on-chip and is obtained from the CLKOUT pad, internal to the device. Multiple ASM3P623S00D/E/F devices can accept the same input clock and distribute it. In this case, the skew between the outputs.
