ASM3P623S00F Zero Cycle Slip Peak EMI reduction IC

ASM3P623S00D/E/F is a versatile, 3.3V zero-delay buffer designed to distribute high-speed clocks. It accepts one reference input and drives out eight low-skew clocks. It is available in a 16pin package. The ASM3P623S00A/B/C is the eight-pin version of the ASM3P623S00. It accepts one reference input .

ASM3P623S00F Features

* Input frequency range: 20MHz - 50MHz. Zero input - output propagation delay. Low-skew outputs.

* Output-output skew less than 250pS. Device-device skew less than 700pS. All parts have on-chip PLLs that lock to an input clock on the CLKIN pin. The PLL feedback

ASM3P623S00A_AllianceSemiconductorCorporation.pdf

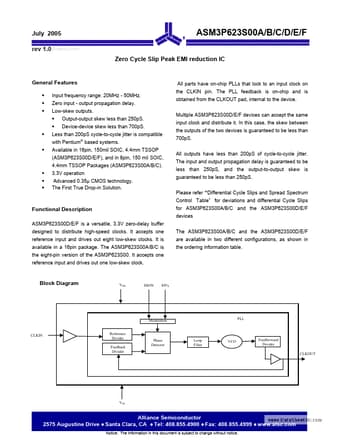

ASM3P623S00F Datasheet Preview — This datasheet PDF includes multiple part numbers: ASM3P623S00F, ASM3P623S00A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ASM3P623S00F, ASM3P623S00A

Manufacturer:

Alliance Semiconductor Corporation

File Size:

339.76 KB

Description:

Zero cycle slip peak emi reduction ic.

Note:

This datasheet PDF includes multiple part numbers: ASM3P623S00F, ASM3P623S00A.
Please refer to the document for exact specifications by model.
