ASM8P18S42ER (ASM8x184x) Voltage Mode PWM Controller

ASM8P18xx is a high performance, adjustable frequency, PWM controller with an integrated spread spectrum modulator for EMI reduction. It contains all the functions of a standard PWM controller along with a user configurable spread spectrum modulation with adjustable spread. ASM8P18xx allows signific.

ASM8P18S42ER Features

* 30V maximum operating voltage with CMOS technology Adjustable PWM frequencies (40 KHz to 400 KHz) Maximum Output drive current of 1A. Wide duty cycle range (0% minimum to 95% maximum) Spread spectrum modulation with adjustable spread. Under voltage lockout with hysteresis. Low startup current: 275?A

ASM8P18S42ER Datasheet (1.57 MB)

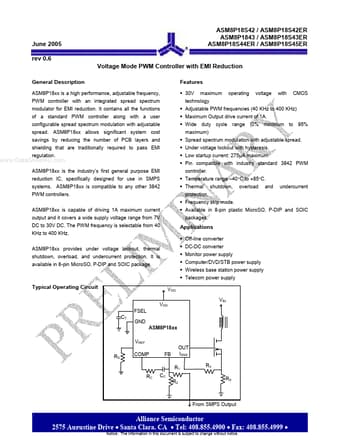

ASM8P18S42ER Datasheet Preview — Preview of ASM8P18S42ER PDF

Datasheet Details

Part number:

ASM8P18S42ER

Manufacturer:

Alliance Semiconductor Corporation

File Size:

1.57 MB

Description:

(asm8x184x) voltage mode pwm controller.
