ASM802L - (ASMxxxx) UP Power Supply Supervisor

Alliance Semiconductor

📥 Download Datasheet

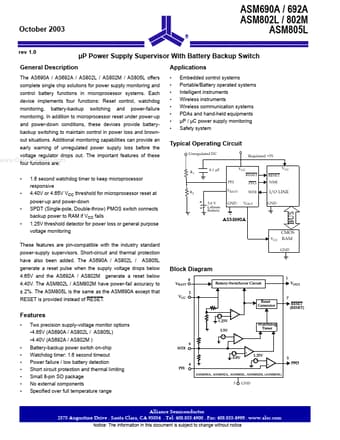

ASM802L Datasheet Preview — Preview of ASM802L PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ASM802L
Manufacturer	Alliance Semiconductor
File Size	356.98 KB
Description	(ASMxxxx) UP Power Supply Supervisor
Datasheet	ASM802L_AllianceSemiconductor.pdf

ASM802L Product details

Description

The AS690A / AS692A / AS802L / AS802M / AS805L offers complete single chip solutions for power supply monitoring and control battery functions in microprocessor systems.

Features

of these four functions are:.
Typical Operating Circuit Unregulated DC Regulated +5V VCC RESET PFI R2 VBATT PFO WDI VOUT RESET NMI VCC www. DataSheet4U. com R1 0.1 µF 1.6 second watchdog timer to keep microprocessor responsive 4.40V or 4.65V VCC threshold for microprocessor reset at power-up and power-down SPDT (Single-pole, Double-throw) PMOS switch connects backup power to RAM if VCC fails 1.25V threshold detector for power loss or general purpose volt.
