ASM810, ASM809 Datasheet - Alliance Semiconductor Corporation

ASM810 (ASM809 / ASM810) 3 Pin Microcontroller Power Supply Supervisor

The ASM809/ASM810 are cost effective 3.0V, 3.3V and 5.0V power supply supervisor circuits optimized for low-power microprocessor (µP), microcontroller (µC) and digital systems. They provide a reset output during power-up, power-down and brown-out conditions. They provide excellent reliability by eli.

ASM810 Features

* Monitor 5V, 3.3V and 3V supplies 140ms min. reset pulse width Active-low reset valid with 1.1V supply (ASM809) Small 3-pin SOT-23 package No external components Specified over full temperature range - -40°C to 105°C Applications

ASM809_AllianceSemiconductorCorporation.pdf

This datasheet PDF includes multiple part numbers: ASM810, ASM809. Please refer to the document for exact specifications by model.

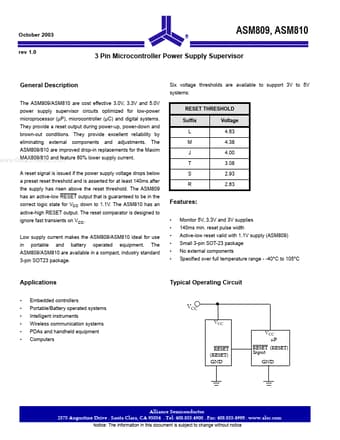

ASM810 Datasheet Preview Page 2 ASM810 Datasheet Preview Page 3

Datasheet Details

Part number:

ASM810, ASM809

Manufacturer:

Alliance Semiconductor Corporation

File Size:

252.88 KB

Description:

(asm809 / asm810) 3 pin microcontroller power supply supervisor.

Note:

This datasheet PDF includes multiple part numbers: ASM810, ASM809.
Please refer to the document for exact specifications by model.
