ASM805L

(ASMxxxx) UP Power Supply Supervisor

ASM805L Features

* of these four functions are:

* Typical Operating Circuit Unregulated DC Regulated +5V VCC RESET PFI R2 VBATT PFO WDI VOUT RESET NMI VCC www.DataSheet4U.com R1 0.1 µF 1.6 second watchdog timer to keep microprocessor responsive 4.40V or 4.65V VCC threshold fo

ASM805L General Description

The AS690A / AS692A / AS802L / AS802M / AS805L offers complete single chip solutions for power supply monitoring and control battery functions in microprocessor systems. Each device implements four functions: Reset control, watchdog monitoring, battery-backup switching and power-failure monitoring. .

ASM805L Datasheet (356.98 KB)

Preview of ASM805L PDF

Datasheet Details

Part number:

ASM805L

Manufacturer:

Alliance Semiconductor

File Size:

356.98 KB

Description:

(asmxxxx) up power supply supervisor.

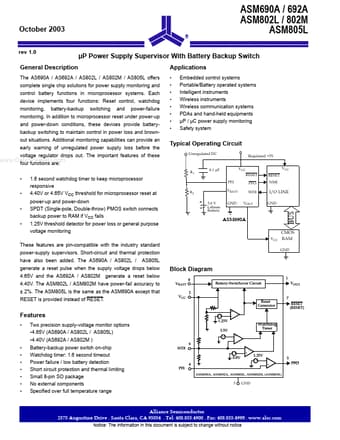

October 2003 rev 1.0 ASM690A / 692A ASM802L / 802M ASM805L µP Power Supply Supervisor With Battery Backup Switch Applications

*

*
