ASM811 - (ASM811 / ASM812) 4 Pin P Voltage Supervisor

Alliance Semiconductor Corporation

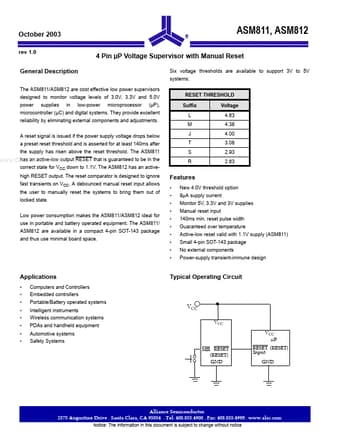

ASM811 Datasheet Preview — Preview of ASM811 PDF

Datasheet Details

Part number	ASM811
Manufacturer	Alliance Semiconductor Corporation
File Size	261.60 KB
Description	(ASM811 / ASM812) 4 Pin P Voltage Supervisor
Datasheet	ASM811_AllianceSemiconductorCorporation.pdf

ASM811 Product details

Description

The ASM811/ASM812 are cost effective low power supervisors designed to monitor voltage levels of 3.0V, 3.3V and 5.0V power supplies in low-power microprocessor (µP), microcontroller (µC) and digital systems.

Features

New 4.0V threshold option 9µA supply current Monitor 5V, 3.3V and 3V supplies Manual reset input 140ms min. reset pulse width Guaranteed over temperature Active-low reset valid with 1.1V supply (ASM811) Small 4-pin SOT-143 package No external components Power-supply transient-immune design.
