PCS2D11 - Power Chip Shielded Inductors

PCS2D11 Description

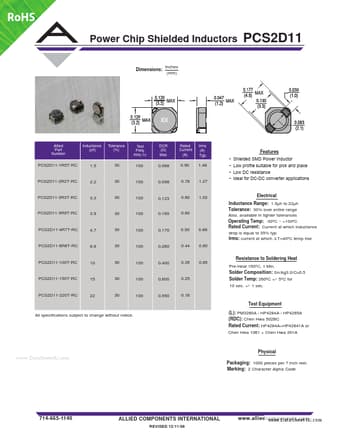

RoHS Power Chip Shielded Inductors Dimensions: Inches (mm) PCS2D11 Allied Part Number Inductance (µh) Tolerance (%) Test Freq.KHz,1v DCR (Ω ) M.

PCS2D11 Features

* Shielded SMD Power Inductor
* Low profile suitable for pick and place
* Low DC resistance

PCS2D11 Applications

* PCS2D11-1R5T-RC 1.5 30 100 0.068 0.90 1.48 PCS2D11-2R2T-RC 2.2 30 100 0.098 0.78 1.27 PCS2D11-3R3T-RC 3.3 30 100 0.123 0.160 0.60 1.02 Electrical Inductance Range: 1.5µh to 22µh Tolerance: 30% over entire range Also, available in tighter tolerances Operating Temp: -30ºC ~ +100º
