PCS27 - Solid State Relay

PCS27 Description

  AC Output Solid State Relay PCS27 AC Output E93397 INPUT PARAMETERS (Ta = 25°C) Control Voltage Range Must Turn-On Voltage 5 12 24 5 12 24 Ma.

PCS27 Features

*  2 A or 3 A Output
*  DC Input: 5 VDC; 12 VAC; 24 VAC
*  PCB Mount
*  Built in Snubber
*  Photoelectric Isolation
*  RoHS Compliant OUTPUT PARAMETERS (Ta = 25°C) Amperage, Voltage 2,240 2, 380 2,240 3,380 Load Voltage Range 48-280 48-440 48-280 48-440 VAC VAC VAC VAC

PCS27 Applications

* at a phase control angle close to 180 degrees the relay's input signal will turn off at the trailing edge of the AC sine wave. The phase delay must be limited to end 200us before AC zero cross. This assures that the relay has time to switch off. Shorter times may cause loss of control at the foll

📥 Download Datasheet

Preview of PCS27 PDF

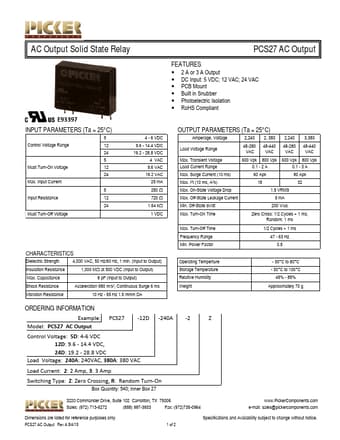

datasheet Preview Page 2
