PCS20 Datasheet - Picker

PCS20 Solid State Relay

in the Data Sheet. DIMENSIONS (mm/inches) 7. Terminal Arrangement ( 241): CHARACTERISTIC CURVES 3220 Commander Drive, Suite 102 Carrollton, TX 75006 Sales: (972) 713-6272 (888) 997-3933 Fax: (972)735-0964 www.PickerComponents.com e-mail: sales@pickercomponents.com Dimensions are listed for.

1.5 Amp Solid State Relay PCS20 E93379 INPUT PARAMETERS (Ta = 25°C) 5 4 - 6 VDC Control Voltage Range 12 9.6 - 14.4 VDC 24 19.2 - 28.8 VDC 5 4 VDC Must Operate Voltage 12 9.6 VDC 24 1.0 VDC Must Release Voltage 1.0 VDC Maximum Input Current 20 mA 5 270 Ω Input Resistance 12 750 Ω 24 1,640 Ω CHARACTERISTICS Dielectric Strength (Input to Output) Insulation Resistance Vibration Resistance Shock Resistance 2,000 VAC, 50 Hz/60 Hz, 1 min 1,000 MΩ at 500 VDC 10 Hz to 55 Hz .

PCS20 Features

*  Load Current 1.2 or 1.5 Amp

*  Load Output Range 48-280VAC

*  DC Input: 5 V, 12 V or 24 V

*  SIL Printed Circuit Board Mount

*  2,000 VAC Opto-Isolation Between Input and Output

*  Zero-Cross or Random Turn-On

*  Optional RC Snubber

*  RoHS Compliant OUTPUT PARAME

PCS20 Datasheet (226.31 KB)

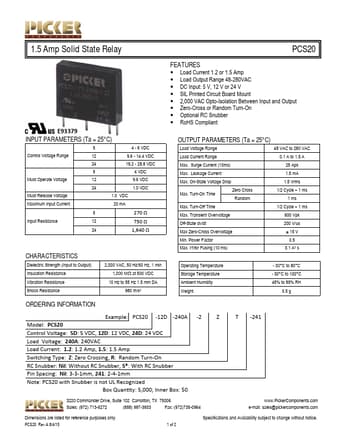

PCS20 Datasheet Preview — Preview of PCS20 PDF

Datasheet Details

Part number:

PCS20

Manufacturer:

Picker

File Size:

226.31 KB

Description:

Solid state relay.
