PCS33 Solid State Relay

PCS33 Description

Solid State Relay *MOSFET DC Voltage Output PCS33 .

PCS33 Features

*  Load Current: 7 to 100 A, MOSFET Output
*  Load Output Range: 0-500 VDC
*  DC Input: 3-32 VDC
*  Panel Mount
*  Dielectric Strength of 2,500 VAC
*  RoHS Compliant OUTPUT PARAMETERS (Ta = 25°C) Load Voltage Option 30 VDC 50 VDC 100 VDC 150 VDC 200 VDC 400 VDC 500 V

PCS33 Applications

* PCH-H-110 for the 400 VDC/10 Amp, 150 VDC/50 Amp, 100 VDC/20 Amp, 50 VDC/40 Amp and 30 VDC/100 Amp Application PCH-H-150 for the 50 VDC/80 Amp, 100 VDC/40 Amp, 200 VDC/40 Amp Application ACCESSORIES SOLD SEPERATELY DIMENSIONS (mm) CHARACTERISTIC CURVES (D200-10) With a PCH-I-50 Heat Sink (D100-4

📥 Download Datasheet

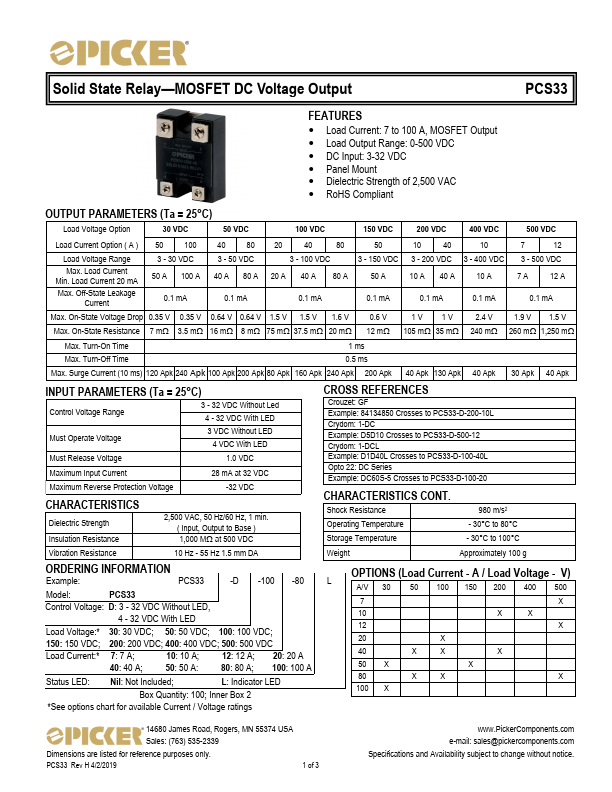

Preview of PCS33 PDF

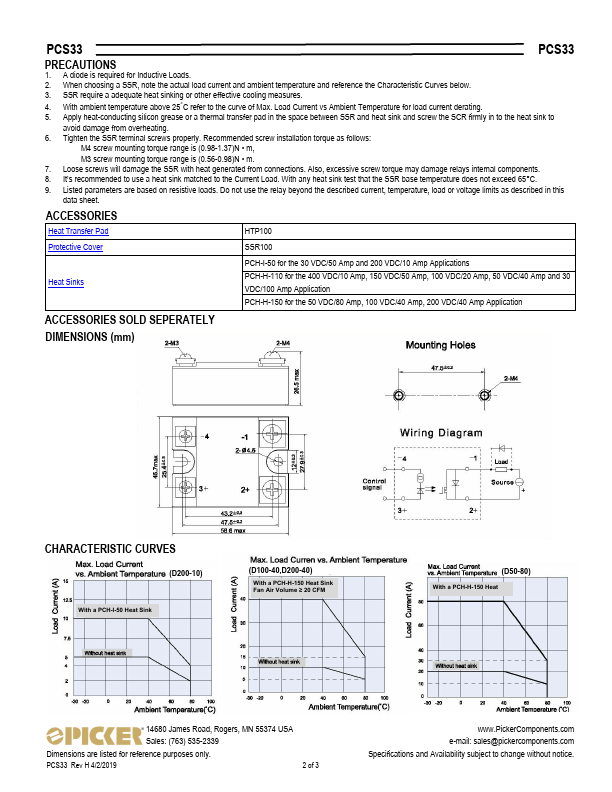

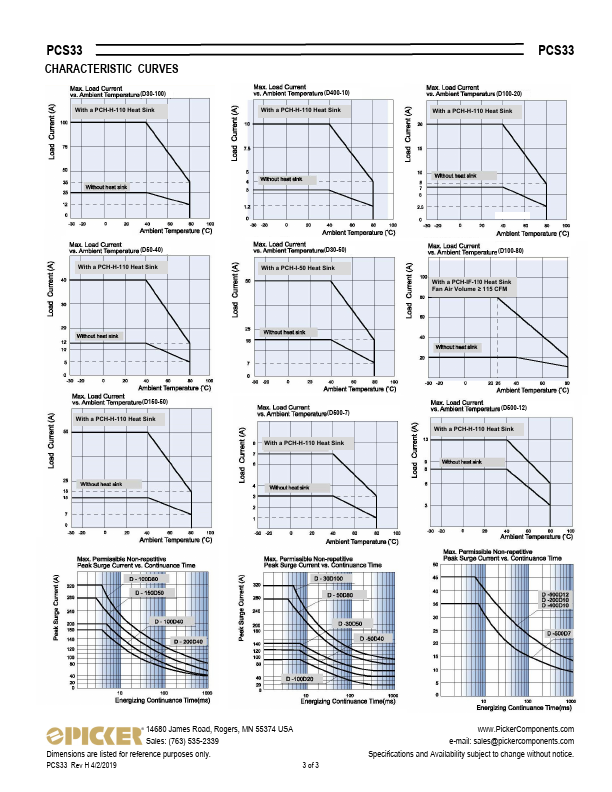

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PCS33
Manufacturer
Picker
File Size
1.25 MB
Datasheet
PCS33-Picker.pdf
Description
Solid State Relay
