TC210HT

Toroidal Chokes High Temp

TC210HT Features

* High Temperature rating up to 200ºC Low Magnetic Radiation Low Core Loss High current capacity up to 21A Available in Horizontal or Vertical configuration Optional Tape Cover Electrical Inductance Range: 1.0µh to 1000µh Additional values av

TC210HT Datasheet (1.02 MB)

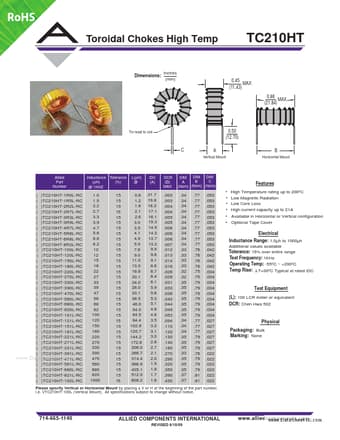

Preview of TC210HT PDF

Datasheet Details

Part number:

TC210HT

Manufacturer:

Allied Components International

File Size:

1.02 MB

Description:

Toroidal chokes high temp.
RoHS Toroidal Chokes High Temp TC210HT 0.45 MAX (11.43) 0.86 MAX (21.84) Dimensions: Inches (mm) Tin lead to coil 0.50 (12.70) C A B Vertical Mo.
