TC2181

Low Noise and High Dynamic Range Packaged GaAs FETs

TC2181 Features

* ! ! ! ! ! ! ! ! ! ! 0.5 dB Typical Noise Figure at 12 GHz High Associated Gain: Ga = 12 dB Typical at 12 GHz 18.5 dBm Typical Power at 12 GHz 13 dB Typical Linear Power Gain at 12 GHz Breakdown Voltage : BVDGO ≥ 9V Lg = 0.25 µm, Wg = 160 µm Tight Vp ranges control High RF input power handling capabi

TC2181 General Description

The TC2181 is a high performance field effect transistor housed in a ceramic micro-x package with TC1101 PHEMT Chip. It has very low noise figure, high associated gain and high dynamic range that makes this device suitable for use in low noise amplifiers. All devices are 100 % DC tested to assure co.

TC2181 Datasheet (305.68 KB)

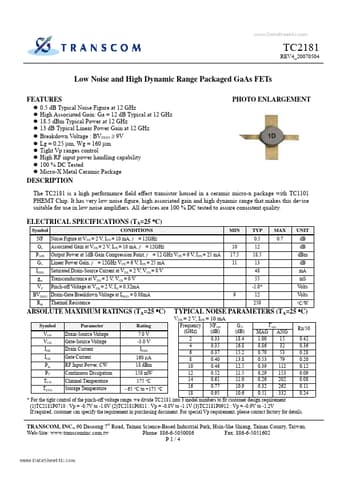

Preview of TC2181 PDF

Datasheet Details

Part number:

TC2181

Manufacturer:

Transcom

File Size:

305.68 KB

Description:

Low noise and high dynamic range packaged gaas fets.
