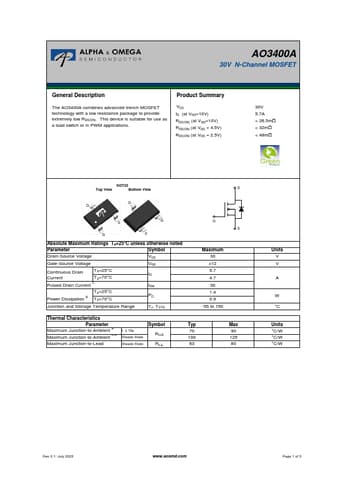

AO3400A
AO3400A is N-Channel MOSFET manufactured by Alpha & Omega Semiconductors.
Description
Product Summary
The AO3400A bines advanced trench MOSFET technology with a low resistance package to provide extremely low RDS(ON). This device is suitable for use as a load switch or in PWM applications.
VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS = 4.5V) RDS(ON) (at VGS = 2.5V)
30V 5.7A < 26.5mΩ < 32mΩ < 48mΩ
SOT23
Top View
Bottom View
Absolute Maximum Ratings TA=25°C unless otherwise noted
Parameter
Symbol
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current
TA=25°C TA=70°C
Pulsed Drain Current C
TA=25°C Power Dissipation B TA=70°C
Junction and Storage Temperature Range
TJ, TSTG
Maximum 30 ±12 5.7 4.7 30 1.4 0.9
-55 to 150
Thermal Characteristics
Parameter
Symbol
Typ
Maximum Junction-to-Ambient A t ≤ 10s Maximum Junction-to-Ambient A D Steady-State
RθJA
70 100
Maximum Junction-to-Lead
Steady-State
RθJL
Max 90 125...
