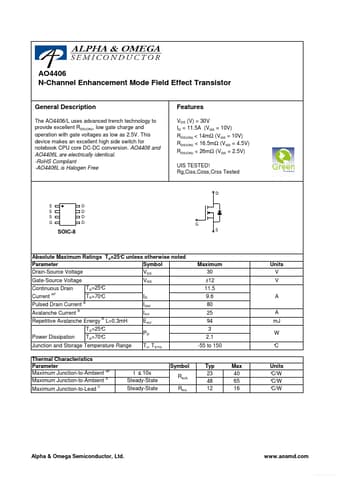

AO4406 Datasheet, Mosfet, Alpha & Omega Semiconductors

AO4406 Features

• Mosfet VDS (V) = 30V ID = 11.5A (VGS = 10V) RDS(ON) < 14mΩ (VGS = 10V) RDS(ON) < 16.5mΩ (VGS = 4.5V) RDS(ON) < 26mΩ (VGS = 2.5V) UIS TESTED! Rg,Ciss,Coss,Crss Tested D S S S G D D D D G S S

PDF File Details

Part number:

AO4406

Manufacturer:

Alpha & Omega Semiconductors

File Size:

123.40kb

Download:

📄 Datasheet

Description:

N-channel mosfet. The AO4406/L uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as

AO4406 Application

• Applications OR USES AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS ARE NOT AUTHORIZED. AOS DOES NOT ASSUME ANY LIABILITY ARISING OUT OF
