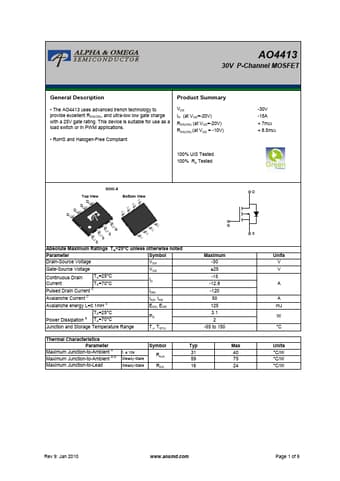

AO4413
Description
The AO4413 uses advanced trench technology to provide excellent RDS(ON), and ultra-low low gate charge with a 25V gate rating. This device is suitable for use as a load switch or in PWM applications.
Features
VDS (V) = -30V ID = -15A RDS(ON) < 7mΩ (VGS = -20V) RDS(ON) < 8.5mΩ (VGS = -10V)
SOIC-8 Top View
SD SD SD GD
Absolute Maximum Ratings TA=25°C unless otherwise noted
Parameter
Symbol
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain
TA=25°C
Current A
TA=70°C
Pulsed Drain Current B
ID IDM
TA=25°C Power Dissipation A TA=70°C
Junction and Storage Temperature Range TJ, TSTG
Maximum -30 ±25 -15 -12.8 -80 3 2.1
-55 to 150
Thermal Characteristics Parameter Maximum Junction-to-Ambient A Maximum Junction-to-Ambient A
Maximum Junction-to-Lead C t ≤ 10s Steady-State Steady-State
Symbol RθJA RθJL
Typ 26 50 14
Max 40 75 24
Units V V
W...
