AO4420L N-Channel FET

The AO4420 uses advanced trench technology to provide excellent R DS(ON), shoot-through immunity and www.DataSheet4U.com body diode characteristics.This device is suitable for use as a synchronous switch in PWM applications. AO4420L is offered in a lead-free package. AO4420L ( Green Product ) is off.

AO4420L Features

* VDS (V) = 30V ID = 13.7A RDS(ON) < 10.5mΩ (VGS = 10V) RDS(ON) < 12mΩ (VGS = 4.5V) D S S S G D D D D G S SOIC-8 Absolute Maximum Ratings T A=25°C unless otherwise noted Parameter Symbol VDS Drain-Source Voltage VGS Gate-Source Voltage Continuous Drain TA=25°C Current A ID TA=70°C B Pulsed Drain C

AO4420_AlphaOmegaSemiconductors.pdf

This datasheet PDF includes multiple part numbers: AO4420L, AO4420. Please refer to the document for exact specifications by model.

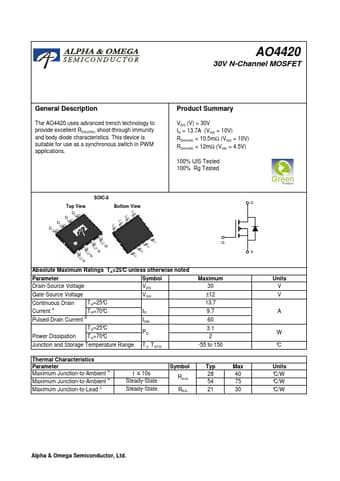

AO4420L Datasheet Preview Page 2 AO4420L Datasheet Preview Page 3

Datasheet Details

Part number:

AO4420L, AO4420

Manufacturer:

Alpha & Omega Semiconductors

File Size:

164.65 KB

Description:

N-channel fet.

Note:

This datasheet PDF includes multiple part numbers: AO4420L, AO4420.
Please refer to the document for exact specifications by model.
