AO4422 Datasheet, mosfet equivalent, Alpha & Omega Semiconductors

AO4422 Features

  • Mosfet VDS (V) = 30V ID = 11A RDS(ON) < 15mΩ (VGS = 10V) RDS(ON) < 24mΩ (VGS = 4.5V) SD SD SD GD SOIC-8 D G S Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Dra

PDF File Details

Part number:

AO4422

Manufacturer:

Alpha & Omega Semiconductors

File Size:

227.65kb

Download:

📄 Datasheet

Description:

N-channel mosfet. The AO4422 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. This device is suitable for use as a loa

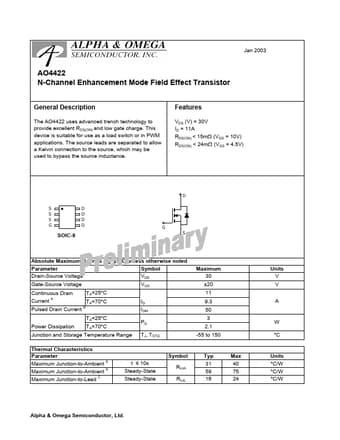

Datasheet Preview: AO4422 📥 Download PDF (227.65kb)
Page 2 of AO4422 Page 3 of AO4422

AO4422 Application

  • Applications The source leads are separated to allow a Kelvin connection to the source, which may be used to bypass the source inductance. Feature
