AO4607 Datasheet - Alpha & Omega Semiconductors

AO4607 MOSFET

The AO4607 uses advanced trench technology MOSFETs to provide excellen RDS(ON) and low gate charge. The complementary MOSFETs may be used in inverter and other applications. A Schottky diode is co-packaged with the nchannel FET to minimize body diode losses. AO4607 is Pb-free (meets ROHS & Sony 259 .

AO4607 Features

* n-channel VDS (V) = 30V ID = 6.9A (VGS=10V) RDS(ON) < 28mΩ (VGS=10V) < 42mΩ (VGS=4.5V) p-channel -30V -6A (VGS=1-0V) RDS(ON) < 35mΩ (VGS = -10V) < 58mΩ (VGS =- 4.5V) SCHOTTKY VDS (V) = 30V, IF = 3A, VF

AO4607_AlphaOmegaSemiconductors.pdf

Preview of AO4607 PDF

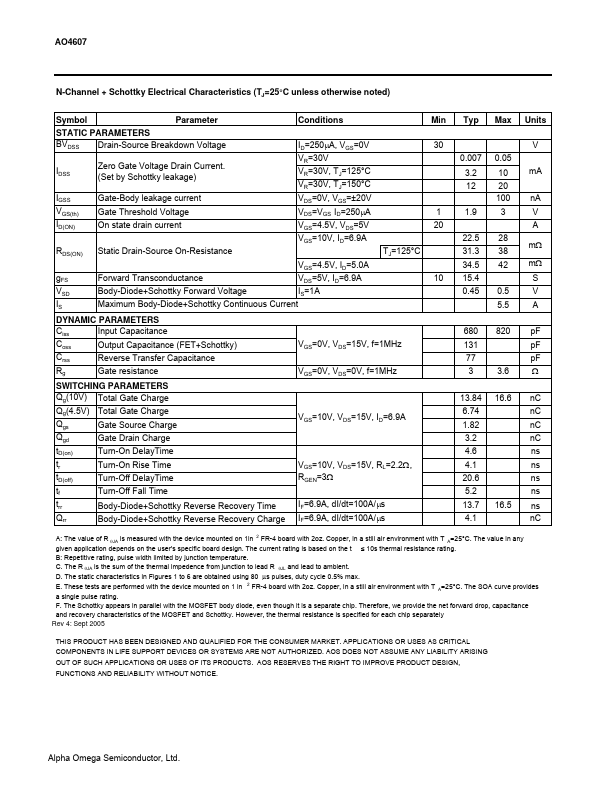

AO4607 Datasheet Preview Page 2 AO4607 Datasheet Preview Page 3

Datasheet Details

Part number:

AO4607

Manufacturer:

Alpha & Omega Semiconductors

File Size:

222.85 KB

Description:

Mosfet.
