AO4609 - MOSFET

Alpha & Omega Semiconductors

Datasheet Details

Part number	AO4609
Manufacturer	Alpha & Omega Semiconductors
File Size	401.47 KB
Description	MOSFET
Datasheet	AO4609_AlphaOmegaSemiconductors.pdf

The AO4609 uses advanced trench technology MOSFETs to provide excellent RDS(ON) and low gate charge.

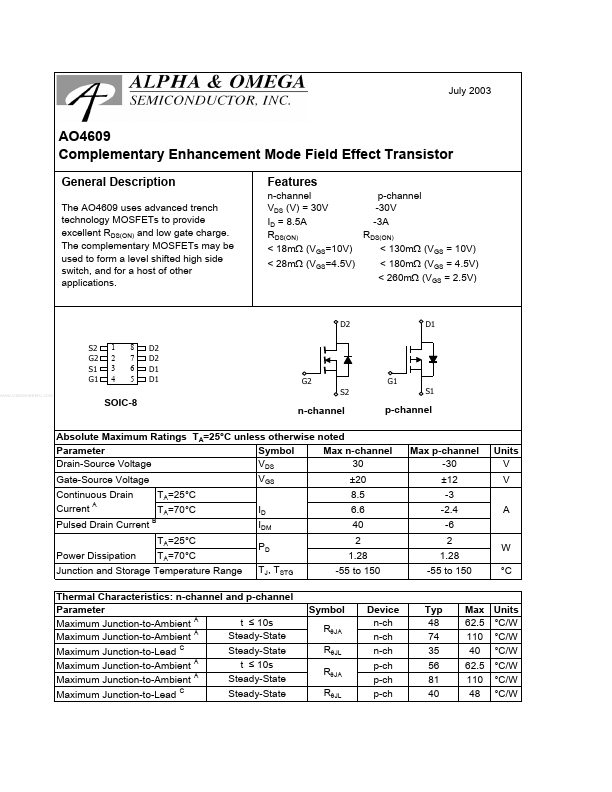

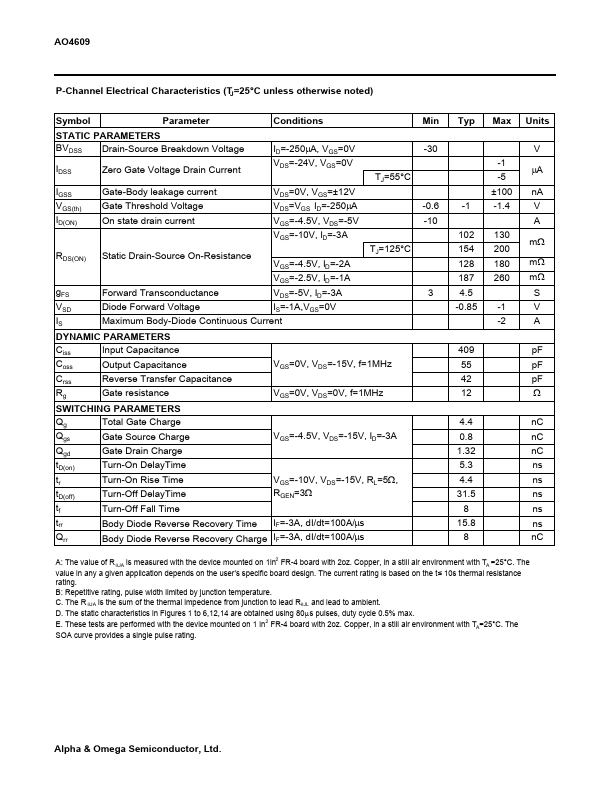

n-channel p-channel -30V VDS (V) = 30V ID = 8.5A -3A RDS(ON) RDS(ON) < 18mΩ (VGS=10V) < 130mΩ (VGS = 10V) < 28mΩ (VGS=4.5V) < 180mΩ (VGS = 4.5V) < 260mΩ (VGS = 2.5V) D2 S2 G2 S1 G1 www. DataSheet4U. com D1 1 2 3 4 8 7 6 5 D2 D2 D1 D1 G2 S2 G1 S1 SOIC-8 n-channel p-channel Absolute Maximum Ratings TA=25°C unless otherwise noted Symbol Parameter Max n-channel VDS Drain-Source Voltage 30 VGS Gate-Source Voltage ±20 Continuous Drain Current A Pulsed Drain Current Power Dissipation B Max p-.
