AO4801, Dual P-Channel MOSFET

AO4801 30V P-Channel MOSFET General .
Product Summary The AO4801 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as.

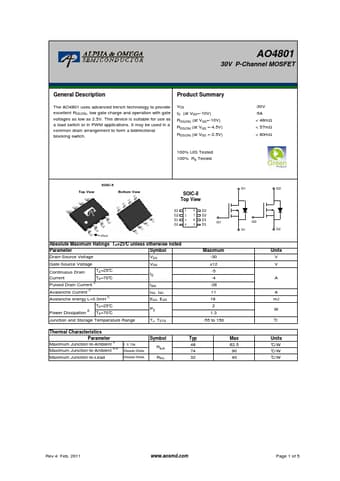

datasheet Preview Page 1 from Datasheet4u.com

AO4801_AlphaOmegaSemiconductors.pdf

AO4801 Datasheet Preview — Preview of AO4801 PDF

Datasheet Details

Part number:

AO4801

Manufacturer:

Alpha & Omega Semiconductors

File Size:

270.28 KB

Description:

Dual P-Channel MOSFET

Applications

* It may be used in a common drain arrangement to form a bidirectional blocking switch. VDS ID (at VGS=-10V) RDS(ON) (at VGS=-10V) RDS(ON) (at VGS =-4.5V) RDS(ON) (at VGS =-2.5V) 100% UIS Tested 100% Rg Tested -30V -5A < 48mΩ < 57mΩ < 80mΩ Top View SOIC-8 Bottom View SOIC-8 Top View D1 S2 1 8
