AO4801A - 30V P-Channel MOSFET

Description

The AO4801A combines advanced trench MOSFET technology with a low resistance package to provide extremely low RDS(ON).This device is suitable for use as a load switch or in PWM applications.

📥 Download Datasheet

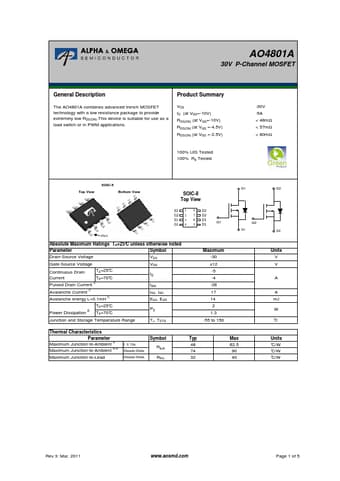

Datasheet preview – AO4801A

Datasheet Details

Part number AO4801A
Manufacturer Alpha & Omega Semiconductors
File Size 286.74 KB
Description 30V P-Channel MOSFET
Datasheet download datasheet AO4801A Datasheet
Additional preview pages of the AO4801A datasheet.

📁 Similar Datasheet

  • AO4801 - Dual P-Channel 30V MOSFET (VBsemi)
  • AO4800 - Dual N-Channel 30V MOSFET (VBsemi)
  • AO4805 - Dual P-Channel MOSFET (VBsemi)
  • AO4811 - Dual P-Channel MOSFET (FreesCale)
  • AO4812 - Dual N-Channel 30V MOSFET (VBsemi)
  • AO4813 - Dual P-Channel MOSFET (VBsemi)
  • AO4815 - Dual P-Channel 30V MOSFET (VBsemi)
  • AO4815 - Dual P-Channel MOSFET (Kexin)
  • AO4817-HF - Dual P-Channel MOSFET (Kexin)
  • AO4818 - Dual N-Channel MOSFET (VBsemi)
Other Datasheets by Alpha & Omega Semiconductors
  • AO4801 - Dual P-Channel MOSFET
  • AO4800 - 30V Dual N-Channel MOSFET
  • AO4800B - 30V Dual N-Channel MOSFET
  • AO4800BL - Dual N-Channel MOSFET
  • AO4802 - Dual N-Channel MOSFET
  • AO4802L - Dual N-Channel MOSFET
  • AO4803 - Dual P-Channel MOSFET
  • AO4803A - 30V Dual P-Channel MOSFET

Full PDF Text Transcription

Click to expand full text
AO4801A 30V P-Channel MOSFET General Description Product Summary The AO4801A combines advanced trench MOSFET technology with a low resistance package to provide extremely low RDS(ON).This device is suitable for use as a load switch or in PWM applications. VDS ID (at VGS=-10V) RDS(ON) (at VGS=-10V) RDS(ON) (at VGS =-4.5V) RDS(ON) (at VGS =-2.5V) 100% UIS Tested 100% Rg Tested -30V -5A < 48mΩ < 57mΩ < 80mΩ SOIC-8 D1 Top View Bottom View SOIC-8 Top View S2 1 8 D2 G2 2 7 D2 S1 3 6 D1 G1 G1 4 5 D1 Pin1 Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain TA=25°C Current TA=70°C Pulsed Drain Current C Avalanche Current C Avalanche energy L=0.
