AO4802L, AO4802, Dual N-Channel MOSFET

Rev 2: Nov 2004 AO4802, AO4802L ( Green Product ) Dual N-Channel Enhancement Mode Field Effect Transistor General .
The AO4802 uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

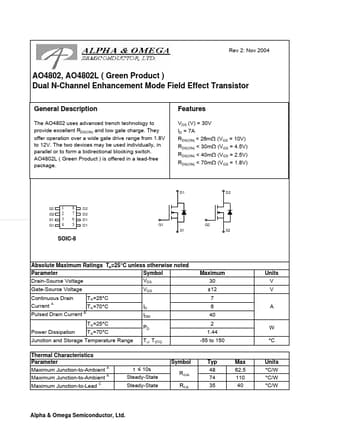

datasheet Preview Page 1 from Datasheet4u.com

AO4802_AlphaOmegaSemiconductors.pdf

AO4802L Datasheet Preview — This datasheet PDF includes multiple part numbers: AO4802L, AO4802. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AO4802L, AO4802

Manufacturer:

Alpha & Omega Semiconductors

File Size:

138.10 KB

Description:

Dual N-Channel MOSFET

Note:

This datasheet PDF includes multiple part numbers: AO4802L, AO4802.
Please refer to the document for exact specifications by model.

Features

* VDS (V) = 30V ID = 7A RDS(ON) < 26m Ω (VGS = 10V) RDS(ON) < 30m Ω (VGS = 4.5V) RDS(ON) < 40m Ω (VGS = 2.5V) RDS(ON) < 70m Ω (VGS = 1.8V) D1 S2 G2 S1 G1 D2 D2 D1 D1 D2 www. DataSheet4U. com 1 2 3 4 8 7 6 5 G1 S1 G2 S2 SOIC-8 Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Sym
