AON6324 - 30V N-Channel MOSFET

Datasheet Summary

Description

Trench Power MOSFET technology Low RDS(ON) Low Gate Charge High Current Capability RoHS and Halogen-Free Compliant Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=4.5V) 30V 85A < 2.8mΩ < 3.5mΩ Applications DC/DC

📥 Download Datasheet

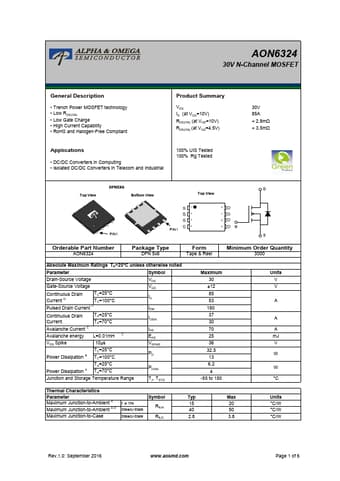

Datasheet preview – AON6324

Datasheet Details

Part number AON6324
Manufacturer Alpha & Omega Semiconductors
File Size 350.99 KB
Description 30V N-Channel MOSFET
Datasheet download datasheet AON6324 Datasheet
Additional preview pages of the AON6324 datasheet.

📁 Similar Datasheet

  • AON6200L - 30V N-Channel MOSFET (Freescale)
  • AON6405 - P-Channel MOSFET (VBsemi)
  • AON6910A - Dual N-Channel MOSFET (VBsemi)
  • AON7202 - N-Channel 30V MOSFET (VBsemi)
  • AON7405 - P-Channel 30V MOSFET (VBsemi)
  • AON7446 - N-Channel MOSFET (VBsemi)
  • AON7502 - N-Channel 30V MOSFET (VBsemi)
  • AON7702A - N-Channel 30V MOSFET (VBsemi)
  • AON7820 - Dual N-Channel 20V MOSFET (VBsemi)
Other Datasheets by Alpha & Omega Semiconductors

Full PDF Text Transcription

Click to expand full text
AON6324 30V N-Channel MOSFET General Description • Trench Power MOSFET technology • Low RDS(ON) • Low Gate Charge • High Current Capability • RoHS and Halogen-Free Compliant Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=4.5V) 30V 85A < 2.8mΩ < 3.
