AON6926 - N-Channel MOSFET

Datasheet Summary

Description

The AON6926 is designed to provide a high efficiency synchronous buck power stage with optimal layout and board space utilization.

It includes two specialized MOSFETs in a dual Power DFN5x6A package.

The Q1 "High Side" MOSFET is desgined to minimze switching losses.

Features

low RDS(ON) to reduce conduction losses as well as an integrated Schottky diode with low QRR and Vf to reduce switching losses. The AON6926 is well suited for use in compact DC/DC converter.

Datasheet Details

Part number	AON6926
Manufacturer	Alpha & Omega Semiconductors
File Size	394.12 KB
Description	N-Channel MOSFET
Datasheet	AON6926 Datasheet
Additional preview pages of the AON6926 datasheet.

📁 Similar Datasheet

AON6910A - Dual N-Channel MOSFET (VBsemi)

AON6200L - 30V N-Channel MOSFET (Freescale)

AON6405 - P-Channel MOSFET (VBsemi)

AON7202 - N-Channel 30V MOSFET (VBsemi)

AON7405 - P-Channel 30V MOSFET (VBsemi)

AON7446 - N-Channel MOSFET (VBsemi)

AON7502 - N-Channel 30V MOSFET (VBsemi)

AON7702A - N-Channel 30V MOSFET (VBsemi)

AON7820 - Dual N-Channel 20V MOSFET (VBsemi)

Full PDF Text Transcription

Click to expand full text

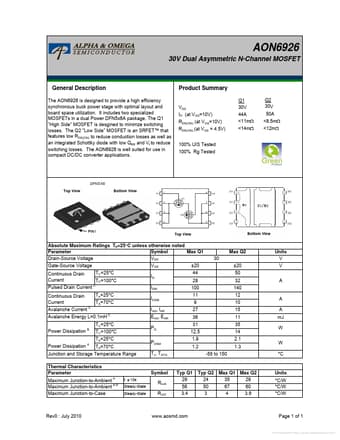

AON6926 30V Dual Asymmetric N-Channel MOSFET General Description The AON6926 is designed to provide a high efficiency synchronous buck power stage with optimal layout and board space utilization. It includes two specialized MOSFETs in a dual Power DFN5x6A package. The Q1 "High Side" MOSFET is desgined to minimze switching losses. The Q2 "Low Side" MOSFET is an SRFET™ that features low RDS(ON) to reduce conduction losses as well as an integrated Schottky diode with low QRR and Vf to reduce switching losses. The AON6926 is well suited for use in compact DC/DC converter applications. Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS = 4.5V) 100% UIS Tested 100% Rg Tested Q1 30V 44A <11mΩ <14mΩ Q2 30V 50A <8.
