AOZ1083 - 1.2A Buck LED Driver

Product Overview

Alpha & Omega Semiconductors

Part number	AOZ1083
Manufacturer	Alpha & Omega Semiconductors
File Size	497.59 KB
Description	1.2A Buck LED Driver
Datasheet	AOZ1083 Datasheet

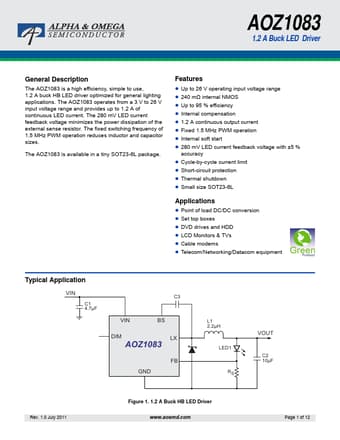

Additional preview pages of the AOZ1083 datasheet.

The AOZ1083 is a high efficiency, simple to use, 1.2 A buck HB LED driver optimized for general lighting applications.

z Up to 26 V operating input voltage range z 240 mΩ internal NMOS z Up to 95 % efficiency z Internal compensation z 1.2 A continuous output current z Fixed 1.5 MHz PWM operation z Internal soft start z 280 mV LED current feedback voltage with ±5 % accuracy z Cycle-by-cycle current limit z Short-circuit protection z Thermal shutdown z Small size SOT23-6L.
