AOZ1084 1.2A Buck LED Driver

The AOZ1084 is a high efficiency, simple to use, 1.2A buck HB LED driver optimized for general lighting applications. The AOZ1084 works from a 4.5V to 36V input voltage range, and provides up to 1.2A of continuous LED current. The 160mV LED current feedback voltage minimizes the power dissipation of.

AOZ1084 Features

* Up to 36V operating input voltage range

* 420mΩ internal NMOS

* Up to 95% efficiency

* Internal compensation

* 1.2A continuous output current

* Fixed 450kHz PWM operation

* Internal soft start

* 160mV LED current feedback voltage with ±8% accuracy

* Cycle-by-cyc

AOZ1084 Datasheet (407.12 KB)

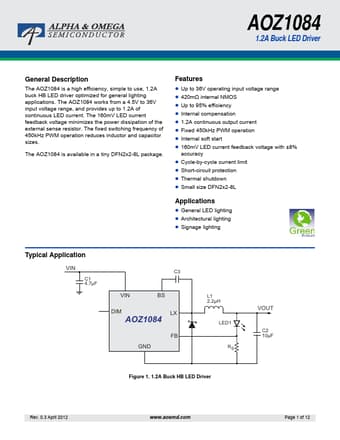

AOZ1084 Datasheet Preview — Preview of AOZ1084 PDF

Datasheet Details

Part number:

AOZ1084

Manufacturer:

Alpha & Omega Semiconductors

File Size:

407.12 KB

Description:

1.2a buck led driver.
