AOZ1324DI

20V Protection Switch

AOZ1324DI Features

* 32mΩ typical ON resistance

* 3.4V to 22V operating input voltage

* VIN and VOUT are rated 28V Abs max.

* True reverse current blocking when VOUT > VIN

* Selectable over-voltage protection

* Programmable soft-start

* VIN under-voltage lockout

* VIN over-voltage locko

AOZ1324DI General Description

The AOZ1324DI power switch is intended for applications that require circuit protections. The input operating voltage ranges between 3.4V and 22V, making it ideal for USB Type-C power delivery applications. VIN and VOUT terminals are rated as 28V Absolute Maximum. The AOZ1324DI provides under-voltag.

AOZ1324DI Datasheet (1.40 MB)

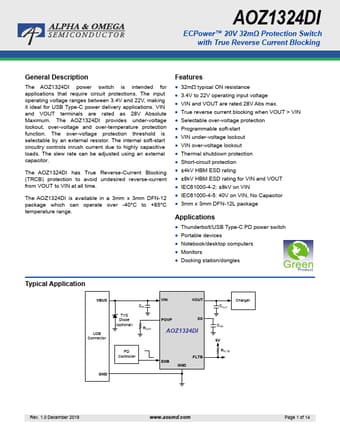

Preview of AOZ1324DI PDF

Datasheet Details

Part number:

AOZ1324DI

Manufacturer:

Alpha & Omega Semiconductors

File Size:

1.40 MB

Description:

20v protection switch.
