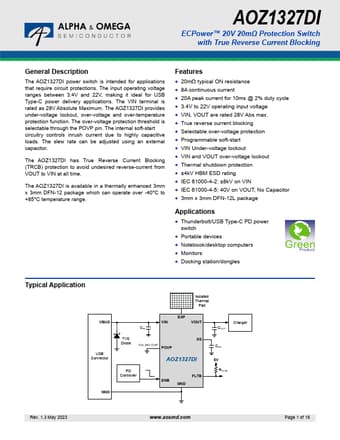

AOZ1327DI Datasheet, Switch, Alpha & Omega Semiconductors

AOZ1327DI Features

• Switch
• 20m typical ON resistance
• 8A continuous current
• 20A peak current for 10ms @ 2% duty cycle
• 3.4V to 22V operating input voltage
• VIN, VOU

PDF File Details

Part number:

AOZ1327DI

Manufacturer:

Alpha & Omega Semiconductors

File Size:

1.40MB

Download:

📄 Datasheet

Description:

Protection switch. The AOZ1327DI power switch is intended for applications that require circuit protections. The input operating voltage ranges between

AOZ1327DI Application

• Applications that require circuit protections. The input operating voltage ranges between 3.4V and 22V, making it ideal for USB Type-C power deliver
