AOZ1325DI

Dual Channel Load Switch

AOZ1325DI Features

* 1.6V to 5.5V input voltage range

* Low RDS(ON) (250mΩ typical at 1.8V)

* Controlled turn-on slew rate: 1ms

* Output discharge function

* Low quiescent current (1.0µA typical)

* Low Shutdown Current (

AOZ1325DI General Description

The AOZ1325DI is a P-channel high-side load switch with slew rates of 1ms. The AOZ1325DI provide an output discharge circuit to quickly discharge the output when the switch is disabled. The P-channel MOSFET has typical on resistance of 250mΩ at 1.8V. The very low RDS(ON) significantly reduces the po.

AOZ1325DI Datasheet (603.77 KB)

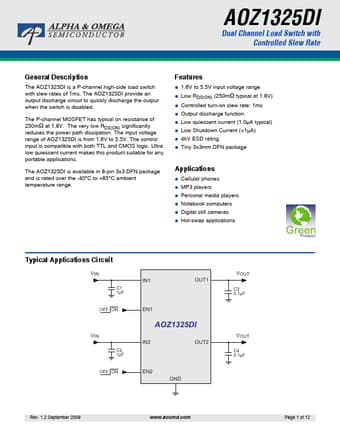

Preview of AOZ1325DI PDF

Datasheet Details

Part number:

AOZ1325DI

Manufacturer:

Alpha & Omega Semiconductors

File Size:

603.77 KB

Description:

Dual channel load switch.
