AOZ23645RQI Datasheet - Alpha & Omega Semiconductors

28V/16A VID Control Synchronous Regulator

AOZ23645RQI Features

* Wide input voltage range - 4 V to 28 V

* Support Intel ITDC up to 16 A

* Support Intel ICCMAX up to 32 A

* 2 bits programmable output voltage adjustable from 0 V to 1.8 V

* Integrated high performance trench MOSFETs capable of : - High peak current - Up to 4

AOZ23645RQI General Description

The AOZ23645RQI is a high-efficiency, easy-to-use DC/DC synchronous buck regulator capable of operation from a 4 V to 28 V input bus. The device is capable of supplying 16 A of continuous output current with an output voltage adjustment from 0 V to 1.8 V by controlling VID0 and VID1 signals. A propr.

AOZ23645RQI Datasheet (2.82 MB)

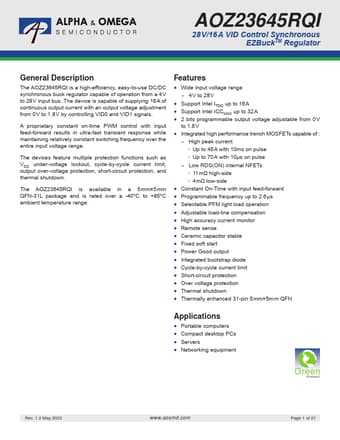

AOZ23645RQI Datasheet Preview — Preview of AOZ23645RQI PDF

Datasheet Details

Part number:

AOZ23645RQI

Manufacturer:

Alpha & Omega Semiconductors

File Size:

2.82 MB

Description:

28v/16a vid control synchronous regulator.
