AOZ2367QI-11 - 24V/20A Synchronous Regulator

Alpha & Omega Semiconductors

AOZ2367QI-11 Datasheet Preview — Preview of AOZ2367QI-11 PDF

Datasheet Details

Part number	AOZ2367QI-11
Manufacturer	Alpha & Omega Semiconductors
File Size	1.84 MB
Description	24V/20A Synchronous Regulator
Datasheet	AOZ2367QI-11-AlphaOmegaSemiconductors.pdf

AOZ2367QI-11 Product details

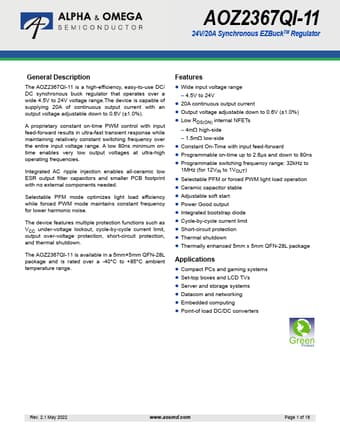

Description

The AOZ2367QI-11 is a high-efficiency, easy-to-use DC/ DC synchronous buck regulator that operates over a wide 4.5V to 24V voltage range.The device is capable of supplying 20A of continuous output current with an output voltage adjustable down to 0.6V (±1.0%).

Features

multiple protection functions such as VCC under-voltage lockout, cycle-by-cycle current limit, output over-voltage protection, short-circuit protection, and thermal shutdown. The AOZ2367QI-11 is available in a 5mm×5mm QFN-28L package and is rated over a -40°C to +85°C ambient temperature range. Features.
Wide input voltage range.
4.5V to 24V.
20A continuous output current.
Output voltage adjustable down to 0.6V (±1.0%).
Low RDS(ON) internal NFETs.
4m high-.
