AOZ2366QI - 28V/20A Synchronous Regulator

Alpha & Omega Semiconductors

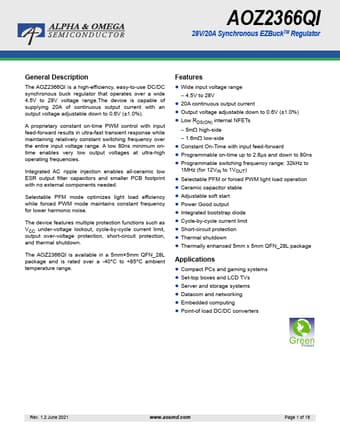

AOZ2366QI Datasheet Preview — Preview of AOZ2366QI PDF

Datasheet Details

Part number	AOZ2366QI
Manufacturer	Alpha & Omega Semiconductors
File Size	1.72 MB
Description	28V/20A Synchronous Regulator
Datasheet	AOZ2366QI-AlphaOmegaSemiconductors.pdf

AOZ2366QI Product details

Description

The AOZ2366QI is a high-efficiency, easy-to-use DC/DC synchronous buck regulator that operates over a wide 4.5V to 28V voltage range.The device is capable of supplying 20A of continuous output current with an output voltage adjustable down to 0.6V (±1.0%).

Features

multiple protection functions such as VCC under-voltage lockout, cycle-by-cycle current limit, output over-voltage protection, short-circuit protection, and thermal shutdown. The AOZ2366QI is available in a 5mm×5mm QFN_28L package and is rated over a -40°C to +85°C ambient temperature range. Features.
Wide input voltage range.
4.5V to 28V.
20A continuous output current.
Output voltage adjustable down to 0.6V (±1.0%).
Low RDS(ON) internal NFETs.
5m high-sid.
