AOZ2378QI - 24V/25A Synchronous Regulator

Alpha & Omega Semiconductors

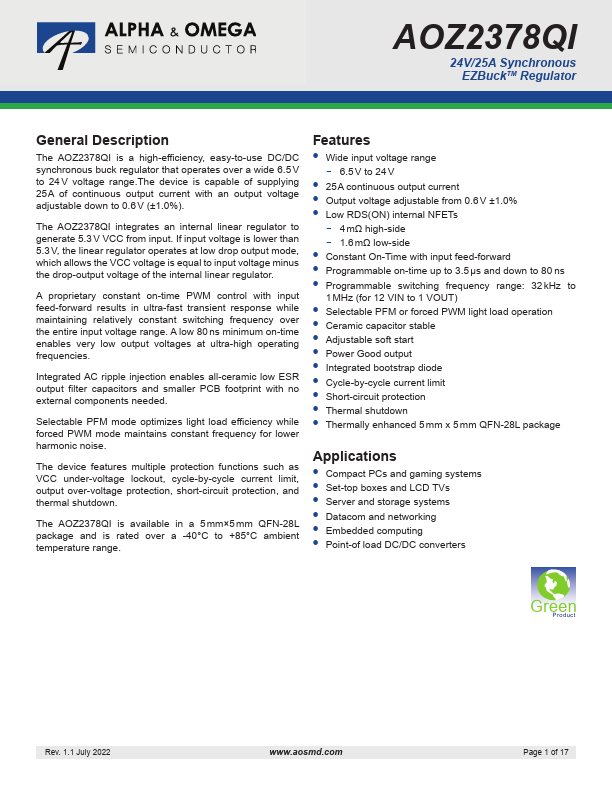

AOZ2378QI Datasheet Preview — Preview of AOZ2378QI PDF

Datasheet Details

Part number	AOZ2378QI
Manufacturer	Alpha & Omega Semiconductors
File Size	2.64 MB
Description	24V/25A Synchronous Regulator
Datasheet	AOZ2378QI-AlphaOmegaSemiconductors.pdf

AOZ2378QI Product details

Description

The AOZ2378QI is a high-efficiency, easy-to-use DC/DC synchronous buck regulator that operates over a wide 6.5 V to 24 V voltage range.The device is capable of supplying 25 A of continuous output current with an output voltage adjustable down to 0.6 V (±1.0%).

Features

multiple protection functions such as VCC under-voltage lockout, cycle-by-cycle current limit, output over-voltage protection, short-circuit protection, and thermal shutdown. The AOZ2378QI is available in a 5 mm×5 mm QFN-28L package and is rated over a -40°C to +85°C ambient temperature range. Features.
Wide input voltage range - 6.5 V to 24 V.
25 A continuous output current.
Output voltage adjustable from 0.6 V ±1.0%.
Low RDS(ON) internal NFETs - 4 mΩ high-s.
