AOZ23567QI Datasheet - Alpha & Omega Semiconductors

28V/22A Synchronous Regulator

AOZ23567QI Features

* multiple protection functions such as VCC under-voltage lockout, cycle-by-cycle current limit, output over-voltage protection, short-circuit protection, and thermal shutdown. The AOZ23567QI is available in a 5 mm × 5 mm QFN-36L package and is rated over a -40°C to +85°C ambient temperature range. F

AOZ23567QI General Description

The AOZ23567QI is a high-efficiency, easy-to-use DC/DC synchronous buck regulator that operates up to 28 V. The device is capable of supplying 22 A of continuous output current with an output voltage adjustable down to 0.6 V (±1.0%). A proprietary constant on-time PWM control with input feed-forward.

AOZ23567QI Datasheet (2.31 MB)

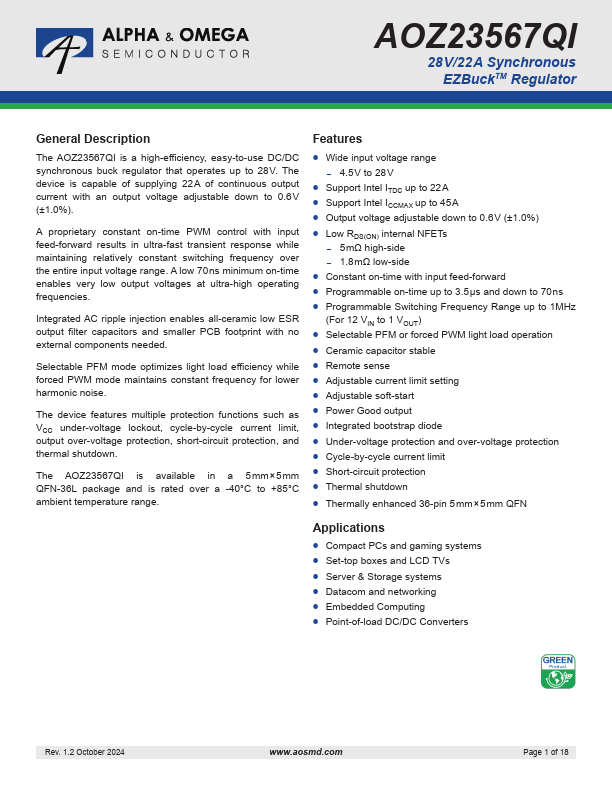

AOZ23567QI Datasheet Preview — Preview of AOZ23567QI PDF

Datasheet Details

Part number:

AOZ23567QI

Manufacturer:

Alpha & Omega Semiconductors

File Size:

2.31 MB

Description:

28v/22a synchronous regulator.
